OEM/ODM Waterproof Customizable PVC PUR M8 Female Aviation Plug Head,Waterproof Customizable PVC PUR M8 Female Aviation Plug Head Factory Price

产品类别

新产品

产品详情

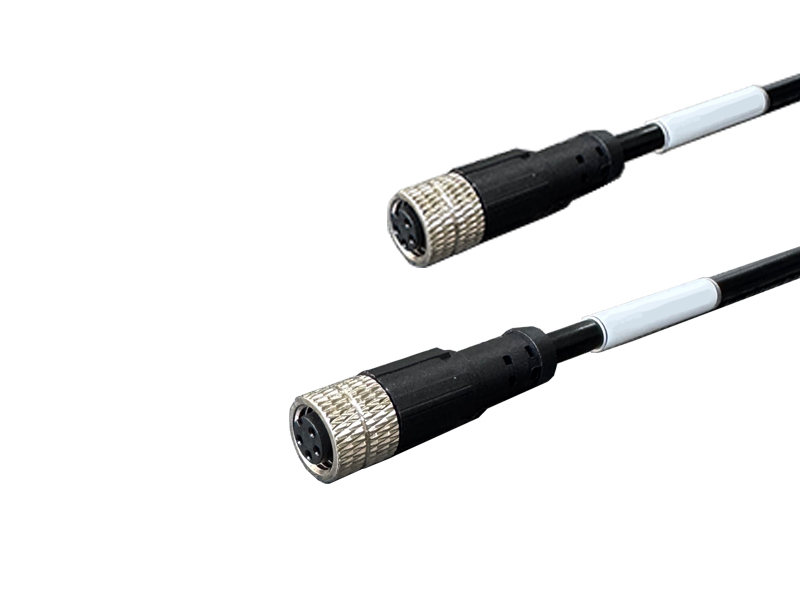

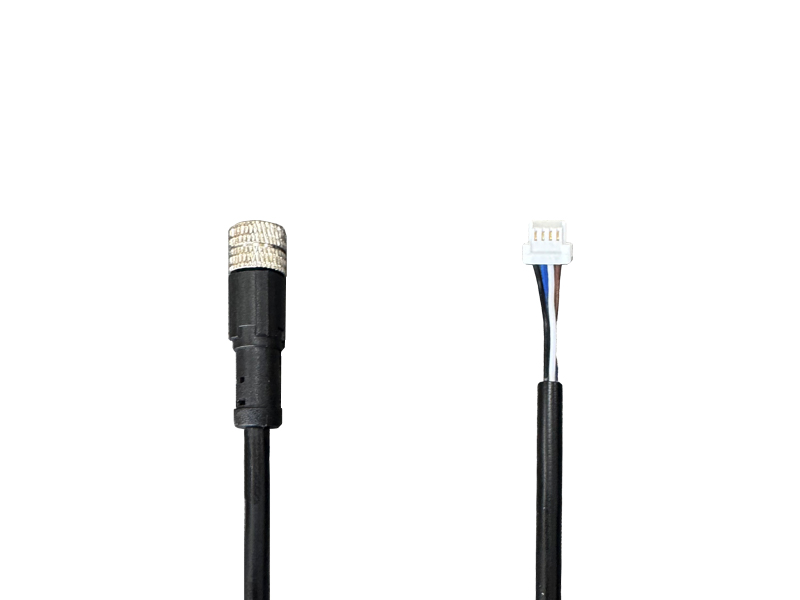

Highlights of M8 Female Aviation Plug Connector:

Robust Construction: Threaded metal housing with vibration-resistant design, ideal for harsh industrial environments requiring frequent plugging and unplugging.

Stable Data Integrity: Gold-plated contacts ensure low resistance and anti-interference for instruments/meters

Material Options: Choose between PVC (flexible/cost-effective) or PUR (oil/abrasion-resistant) cables.

High-Current Support: Supports up to 4A/pin (customizable for higher loads) in robotics joint motors and control units

Basic Specifications

Number of Contacts: 3 or 4
Locking Method: M8X1 thread / M8x1 screw
Connection Method: Welding, potted cable / potting and sealing on the cable
Connection Cross - Sectional Area (mm²): 0.14mm² (AWG 26), 0.25mm² (AWG 24), 0.34mm² (AWG 22)

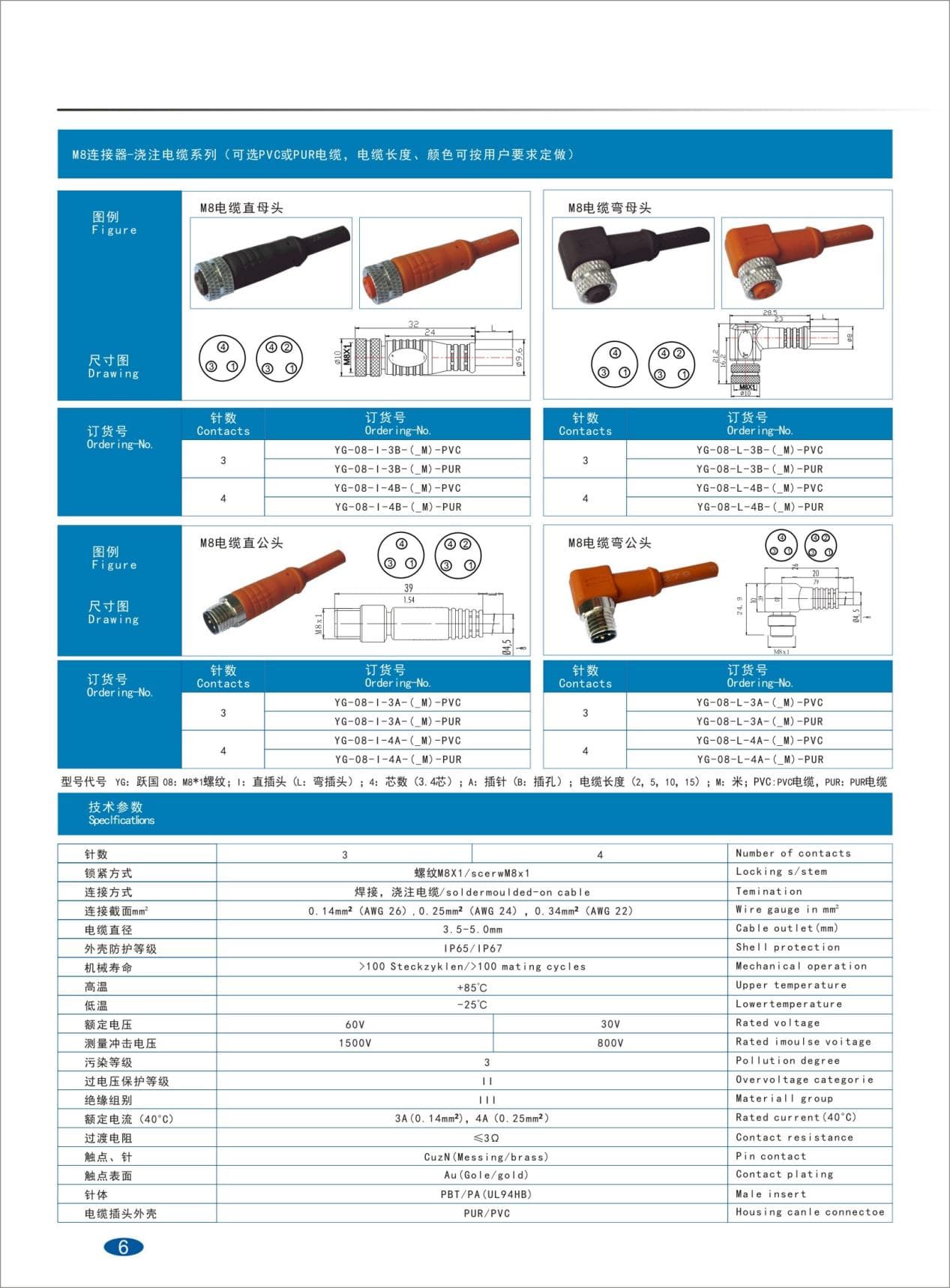

M8 Female Aviation Plug Head Specifications
Parameter	Specifications
Shell Protection Level	IP65/IP67
Outer Diameter of Cable	3.5 - 5.0mm
Mechanical Life	>100 insertion and extraction cycles / 100 mating cycles
High Temperature	+85°C
Low Temperature	-25°C
Operating temperature	-40℃ to +105℃
Rated Voltage	60V for 3 - contact, 30V for 4 - contact
Surge Voltage	1500V for 3 - contact, 800V for 4 - contact
Pollution Degree	3
Over - voltage Protection Level	III
Insulation Group	III
Rated Current (at 40°C)	3A for 0.14mm², 4A for 0.25mm²
Transition Resistance	≤3Ω
Contact Pin	Copper - zinc alloy (brass) / brass
Contact Surface	Gold (gold - plated)
Pin Body	Polybutylene terephthalate (UL94HB flame - retardant grade)
Cable Plug Shell	Polyurethane / polyvinyl chloride

Application:

Industrial Automation: Used for signal transmission and power connection in automated production line equipment, ensuring stable equipment operation and adapting to the frequent plug - and - unplug requirements in industrial environments.

Instruments and Meters: Compatible with various precision instruments and meters, ensuring the accuracy and stability of data transmission and preventing external interference from affecting measurement results.

Robotics: Establishes reliable connections between robot joints, sensors, and control units, meeting the high - reliability requirements of connectors during complex robot movements.

Transportation:Can be applied in automotive electronic systems, rail transit signal systems, etc. It has good vibration - and shock - resistance performance, adapting to the harsh environments in the transportation field.

Aerospace (Auxiliary Equipment): Used in some aerospace ground support equipment or small airborne and on - board equipment with high - reliability requirements, meeting the needs of relevant equipment for lightweight and high - reliability connections.
